Which of you are expert at finding equivalent resistance

[Alt Number 3]

Dear Curries.me

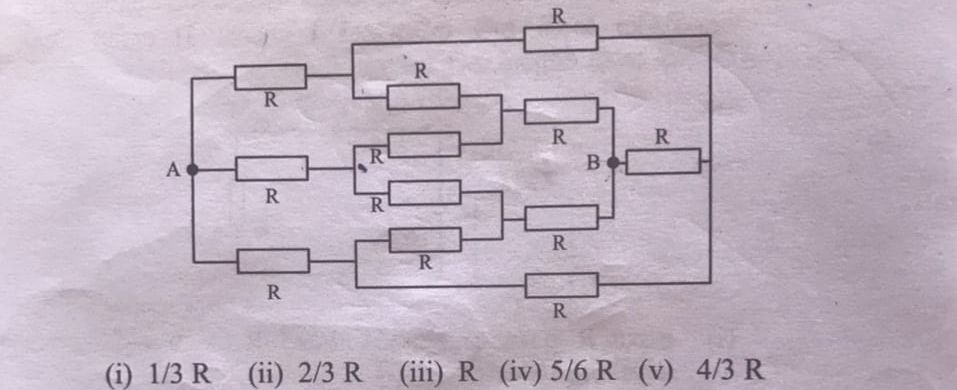

Please help me find equivalent resistance

Assume resistor value is 1 for this q only

For the rest take resistor as R

Wtf mane



[Blackout.xl]

Bumo



[auboutduprecipice]

what's this nerd trash



[Golang]

Q1 = iv
Q2 = iii
Q3 = iv

Thank me later faggot



[Alt Number 3]

Q1 = iv
Q2 = iii
Q3 = iv

Thank me later faggot

I need working out son.



[Golang]

I need working out son.

Were they the right answers? I was just guessing



[Alt Number 3]

Were they the right answers? I was just guessing

I don’t have answer



[Deleted member 2100]

162



[ShredPill]

Nibba this the aptitude test for Oxford? I did this paper (failed it jfl)



[Alt Number 3]

Nibba this the aptitude test for Oxford? I did this paper (failed it jfl)

Nah I have to help some kid do it. I am his tutor but even Ion know this shit. I’m scared they’ll take my money if I can’t explain



[ShredPill]

Nah I have to help some kid do it. I am his tutor but even Ion know this shit. I’m scared they’ll take my money if I can’t explain

Okay got ya, look up thevenin and norton theorem, theres like a 10min vid on youtube explaining it, not too hard just takes time



[Krezo]

Chad's balls deep in stacy while you work out the equivalent resistance



[Alt Number 3]

Okay got ya, look up thevenin and norton theorem, theres like a 10min vid on youtube explaining it, not too hard just takes time

I learned that stuff but it’s for current and voltage innit?



[AbandonShip]

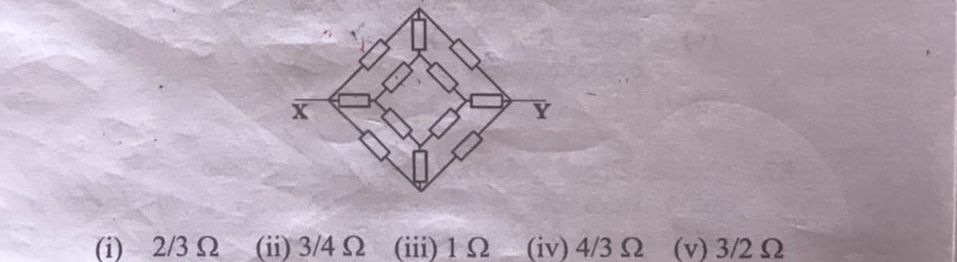

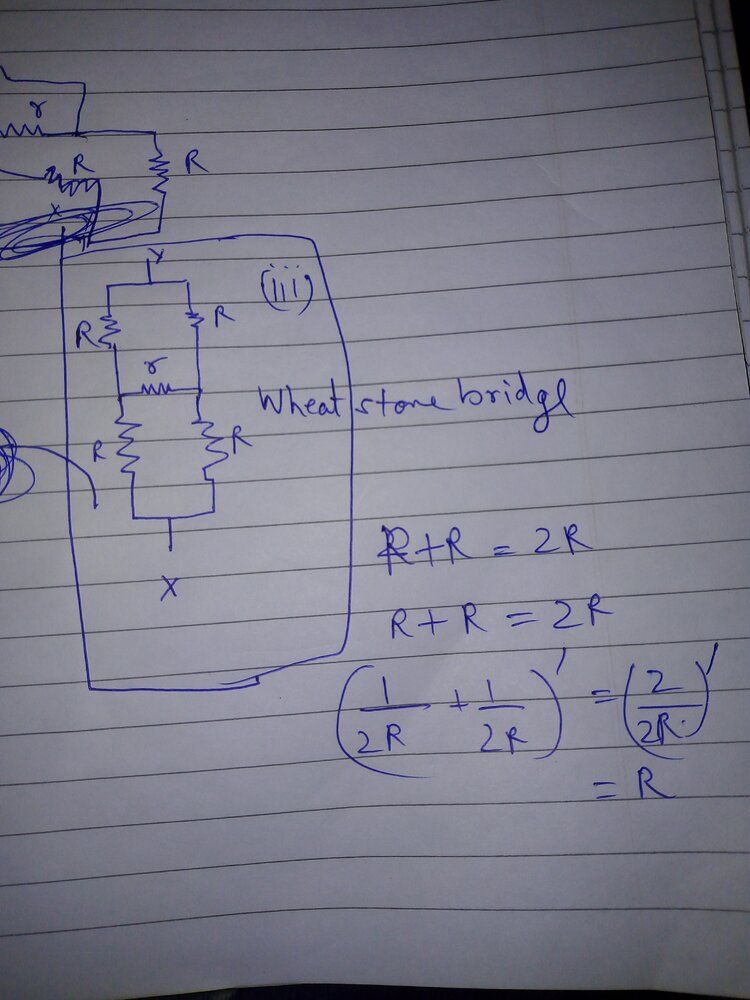

3rd one is a wheatstone bridge

Rest are kinda difficult. i'll see if i can solve them
You might have to use Kirchhoff's loop rule for others but that would be very tedious



[Krezo]

3rd one is a wheatstone bridge
View attachment 323342
Rest are kinda difficult. i'll see if i can solve them
You might have to use Kirchhoff's loop rule for others but that would be very tedious

lol nerd



[fukmylyf]

Got it. I'll try to explain step by step:

Spoiler



[AbandonShip]

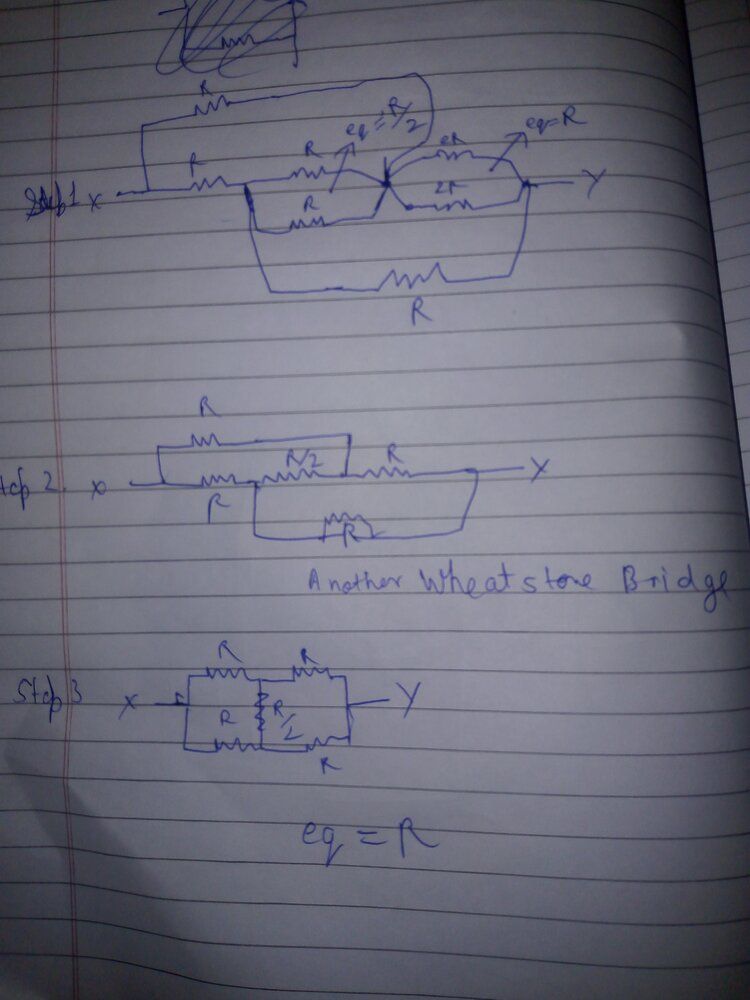

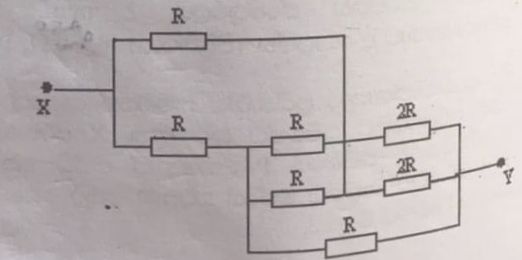

Solved the second one as well

Answer is R again



[fukmylyf]

i always hated physics.



[AbandonShip]

i always hated physics.

Physics is life son



[Deleted member 3832]

I don't even understand what the objective is. We are talking about resistance here so I think it's about Ohm?



[AbandonShip]

I don't even understand what the objective is. We are talking about resistance here so I think it's about Ohm?

You have to find the resistance between point x and y.
Using series and parallel laws or Kirchhoff law
